50t crane hire across Sydney

50t crane hire for city constructions

We understand that achieving quality work on small city construction sites can be difficult. Getting the right balance of manoeuvrability and lifting capacity when you hire a crane to work on your project site is more important than ever. Luckily for you, our 50t mobile crane, the Liebherr LTC 1050-3.1, is readily available for hire to projects across Greater Sydney. We can guarantee it will deliver outstanding handling, manoeuvrability, and lifting capacity for your project.


Liebherr LTC 1050-3.1 50t crane hire

Our Liebherr 50t mobile crane for hire is the crane to choose when you need excellent reach and lifting capacity on a work site with restricted or limited access. Our 50t crane is ideal for high capacity lifting on constricted work sites because of its revolutionary compact design. With a width of only 2.55m, this 50t crane for hire can be manoeuvred through even the narrowest of gaps. It’s also perfectly capable of performing lifts within industrial buildings, heritage listed structures, and much more.

Action-Cranes-50t-City-Crane-Hire-5-NSW

50t city crane features

  • ZF powershift gearbox with torque converter, lock-up cludge, and integrated distribution gearbox with longitudinal differential
  • 4-point supporting system, hydraulically telescopable into horizontal and vertical directions.
  • All axles steered, axles 1 and 3 driven with transverse differential blocks
  • All axles on hydro pneumatic suspension and lockable hydraulically
  • 2-circuit system with hydraulic servo steering
  • Telescopic boom with 1 base section and 4 telescoping sections
  • 6.5t counterweight
  • 1 differential double ram with safety check valves and hydraulic compensation circuit
  • Axial piston fixed displacement motor, spring loaded rope winch with installed planetary gear, and hydraulically releasing holding break
  • Spacious, corrosion resistant crane cab with comfort furnishings
  • LICCON2 safe load indicator, hoist limit switch, and safety valves against holes and pipe rupture
  • 3-roller compact hook block with a double hook

Specifications

  • Max. load capacity: 50 tonnes
  • Telescopic boom length: from 8.10m up to 36.00m
  • Lattice jib length: from 1.50 m up to 13.00 m
  • Drive engine: Mercedes Benz 6-cylinder diesel engine
  • Drive engine/power: 260 kW
  • Number of axles: 3
  • Drive/steering standard: 6 x 6 x 6
  • Driving speed: 85.00 km/h
  • Total ballast: 6.50 t

Options

  • Telescopic crane cabin

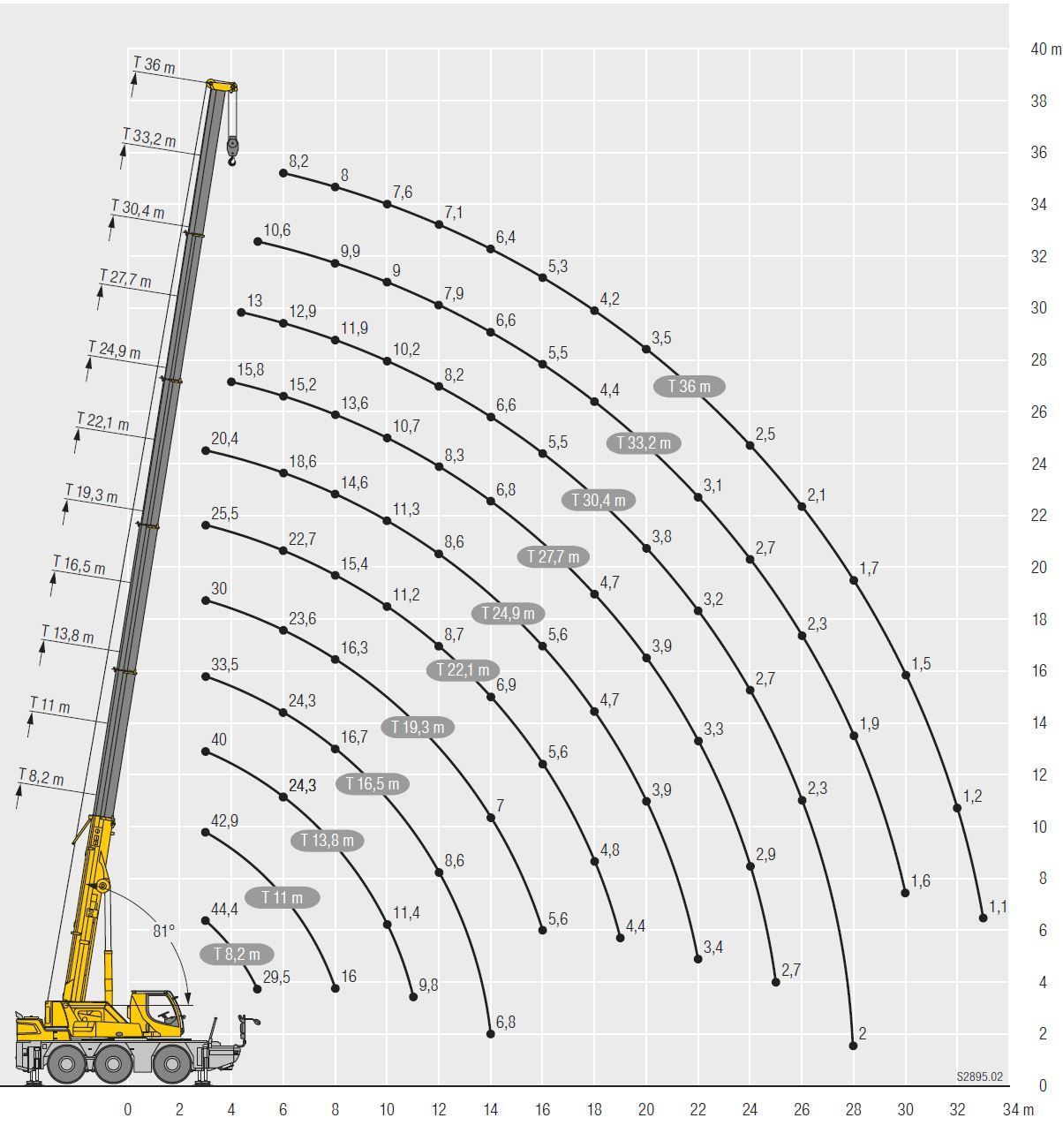

Action Cranes 50t Working Radius Specs

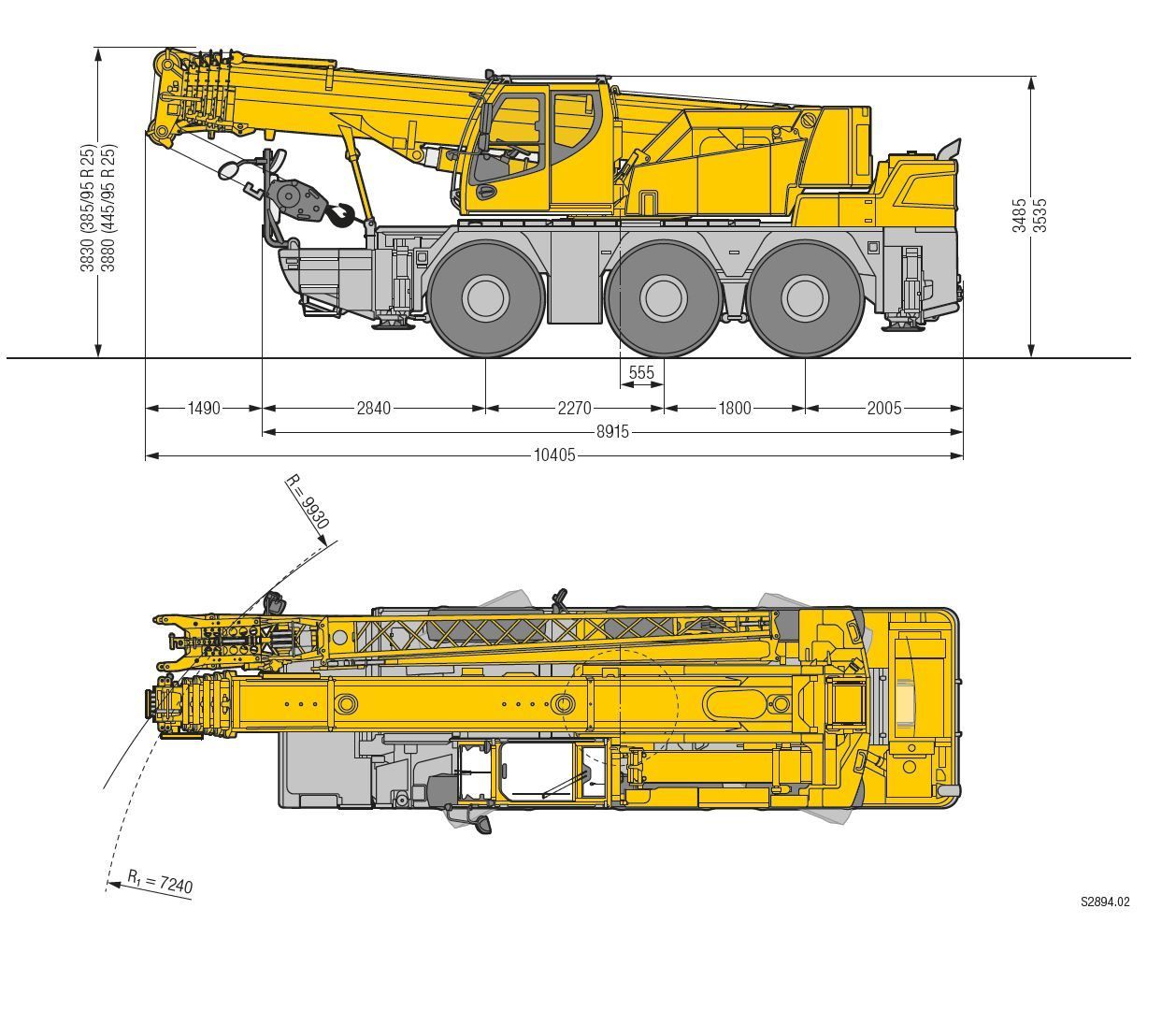

Action Cranes 50t Dimension Specs
Action-Cranes-50t-City-Crane-Hire-4-NSW

Hire our capable and compact 50t crane for your construction needs!

Enquire about our 50t crane hire

If you need a capable and compact crane for construction projects in Sydney, Wollongong, Wollondilly Shire, Blue Mountains and Southern Highlands, contact our team to secure our 50t mobile crane today. Give us a call now or fill out our online form to direct your questions to our team. We look forward to hearing from you!
