1, 2 & 3 PERSON MAN BOXES FOR ALL PROJECT NEEDS

Single, Two-Person & Three-Person Man Boxes | Sydney

Sydney construction sites are getting busier and the equipment on them even more diverse. To transport workers from one end of the site to another you need a man box that any crane can lift. Our man boxes are suitable for use with most overhead crane systems and will ensure you lift workers safely and efficiently. Hire a man box for your construction site today.

Personnel carrying made easy

Man boxes, otherwise known as man buckets or crane work boxes, are specifically designed for carrying personnel via crane to out of reach working areas. They can be used when scaffolding and elevated working platforms are not practical. In the case of three-man boxes, they can also be used for first aid rescue applications. Our man boxes are made with your safety in mind; the doors are self-closing and fitted with a latch to prevent unintentional opening during works. Safety harnesses should be worn with use. Their lifting lugs enable them to be easily manoeuvrable by crane.

Action-Cranes-3-Person-Man-Box-1-Sydney
Action-Cranes-2-Person-Man-Box-1-Sydney
Action-Cranes-1-Person-Man-Box-1-Sydney

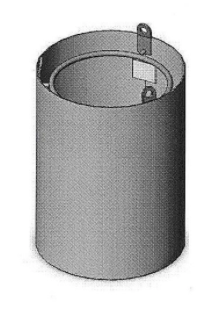

Single Man Box Specifications

  • Safe working load: 250kg
  • Unit weight: 160kg
  • Suitable for: 1 person
  • Chain sling length: 2m
  • Comes with sling compliance tag
  • Comes with harness anchor point

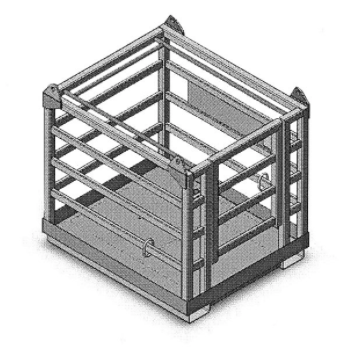

Two-Person Man Box Specifications

  • Safe working load: 250kg
  • Unit weight: 160kg
  • Suitable for: 2 person
  • Pocket size: 165x65mm
  • Pocket centres: 775mm
  • Hand railing: 975mm from floor level
  • Chain length: 2400mm
  • Dimensions [LxW]: 1200x1000mm
  • Comes with inward swinging gate
  • Comes with harness anchor points on each side

Three-Person Man Box Specifications

  • Also acts as first aid cage
  • Safe working load: 400kg
  • Maximum number of people: 3
  • Pocket size: 245x65mm
  • Pocket centres: 950mm
  • Comes with lifting chains
  • Comes with inward swinging gate for normal applications
  • Comes with outward swinging gate for first aid rescue applications
Action-Cranes-3-Person-Man-Box-3-Sydney
Action-Cranes-3-Person-Man-Box-2-Sydney
Action-Cranes-2-Person-Man-Box-2-Sydney
Action-Cranes-2-Person-Man-Box-3-Sydney
Action-Cranes-1-Person-Man-Box-2-Sydney

Sydney

Serving the Greater Sydney Area

If you’re anywhere in Sydney, Wollongong, Wollondilly Shire, Blue Mountains or the Southern Highlands, we can come to you!

NSW-Coastline
